2018 high quality low price plug socket 7pin connector FOB Reference Price:Get Latest Price

2018 high quality low price plug socket 7pin connector FOB Reference Price:Get Latest Price

2018 high quality low price plug socket 7pin connector FOB Reference Price:Get Latest Price

Our Product Detail

This is the description of 2018 high quality low price plug socket 7pin connector FOB Reference Price:Get Latest Price
Packaging & Delivery
Packaging Details
Export carton, Size 17cm(L) x 8cm (W)x 6 cm (H), 10pcs/Carton, 0.0008M3 per carton, Net weight: 0.5KG, Gross weight: 0.54KG
Port
Xia men, Shen zhen, Guang zhou,Shang hai,Hong kong, Tian jin, Ning bo port
Lead Time :
3-7 days
About YW 20

YW-20 waterproof connector, zinc alloy shell, effective safety and signal shielding,
using the locking screw, more secure and reliable.

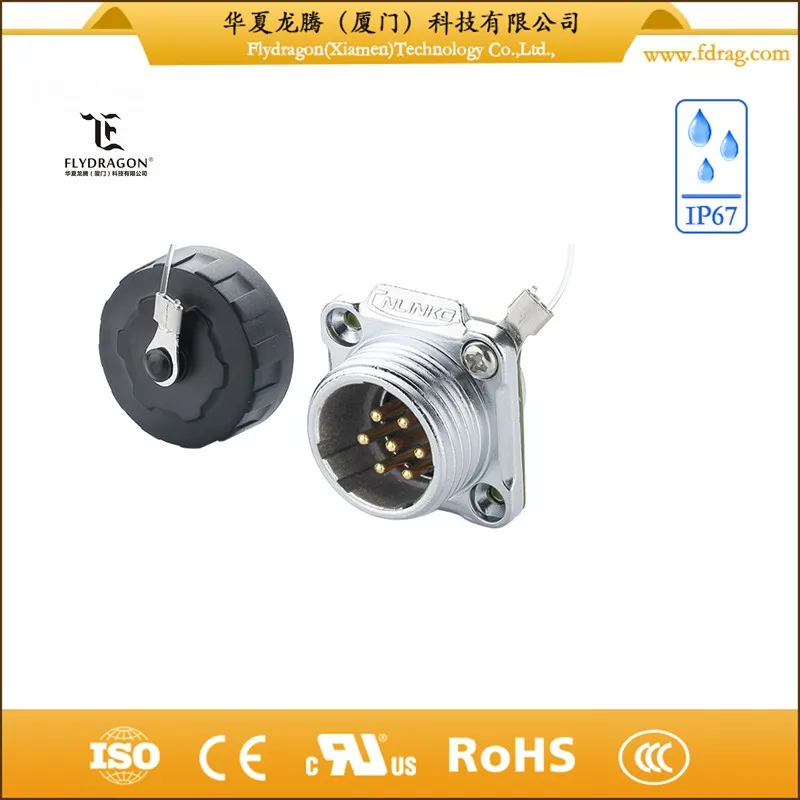

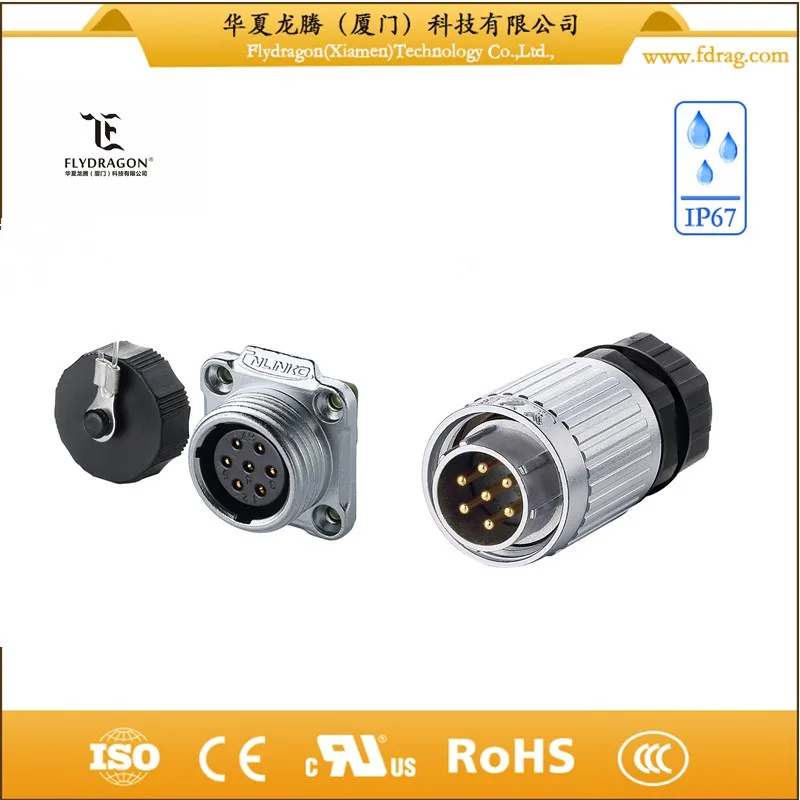

2018 high quality low price plug socket 7pin connector



2018 high quality low price plug socket 7pin connector

















Product Description

plug sperkon socket 7pin safe connector

plug socket safe

Product details

Type IP67 electrical and signal connector
Number of contacts 7 pin
Wire Size 1.0mm2 ~ 1.5mm2/18~16 AWG
Rated Current 12A
Rated Voltage 500V
Contact Termination Soldering/Crimping
Housing&Insulation material High-performance engineering plastics
Metals material Zinc alloy(pearl hard chrome)
Certificate CE,RoHS,UL
Product Keywords plug speakon,plug socket safe,plug socket 7pin connector

YW-20 SERIES SPECIFICATIONS SHEET



PINS 2 3 4 5 7 9 12
Cable specification 2.5mm2~4mm2/
14~12 AWG
1.0mm2~1.5mm2/
18~16 AWG
0.15mm2~0.2mm2/
26-24 AWG
Diameter range Φ8mm~Φ12mm Φ7mm~Φ9mm Φ5.5mm~Φ7mm
Contact diameter × number Φ2.7×2 Φ2.7×3 Φ2.7×4 Φ1.8×5 Φ1.8×7 Φ1.0×9 Φ1.0×12
Rated Current (A) 20A 12A 5A
Operating voltage (AC.V.rms) 500V 400V
Contact resistance <1mΩ <2.5mΩ <5mΩ
/
Temperature rise 20A contact temperature
below 30℃,
25A......40℃↓,
30A......50℃↓.
12A......30℃↓,
15A......40℃↓,
20A......50℃↓.
/
Withstanding Voltage (AC.V)
1 minute
2500V 1500V
Insulation resistance >500MΩ
Protection level IP65/IP67
Durability ≥500times
Working temperature  -40℃~80℃
Connecting mode Screw connecting
Assembly wire soldering/crimping
MATERIALS
Housing&insulation parts high-perpormance engineering plastics
Hardware zinc alloy(pearl hard chrome)
copper pins copper alloy
(gold-plated 4U)
waterproof cover Silica gel
Flammability rating UL94-V0








2018 high quality low price plug socket 7pin connector2018 high quality low price plug socket 7pin connector

All Series

2018 high quality low price plug socket 7pin connector



Company Information

Flydragon Technology Co., Ltd., located at Pilot Free Trade Zone ,Xiamen city, is a professional company dedicated in design, research and develop high performance state-of-the-art industrial connectors of choice for technologically advanced products with environmentally friendly results ,committed to solving high-end connectivity solutions. Having experienced management team with international vision and high quality staff, Flydragon Technology Co., Ltd., is fully responsible for sales of CNLINKO brand industrial connectors produced by SHENZHEN LINKO ELECTRIC CO.,LTD. in overseas market.







FAQ
Q1. Can I have a sample ?
A1.Yes, we welcome sample order to test and check quality. Some samples are free, and some samples should be paid in advance and the cost will be refund after further order.

Q2. What about the production lead time?
A2.It will take about 3 days to 7 days for our standard product .


Q3. Do you have any MOQ (minimum order quantity) limit?
A3.Low MOQ, 1pc for sample checking is available.


Q4. How do you ship the goods and how long does it take to arrive?

A4.We often ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping is also optional.


Q5. Is it OEM available?
A5.Yes. We have rich experience and good ability to put your design and idea into real product, normally it take about 20 to 30 days for new product from mold design to final production.

1. We will reply your inquiries within 1 hour to 24 hours.

2. We provide 1 year quality warranty period.

3. We always try our best to keep our words.

4. We provide customized solution according to your requirement.

5. Our goal is to create maximum value for our customers and partners around the world.
